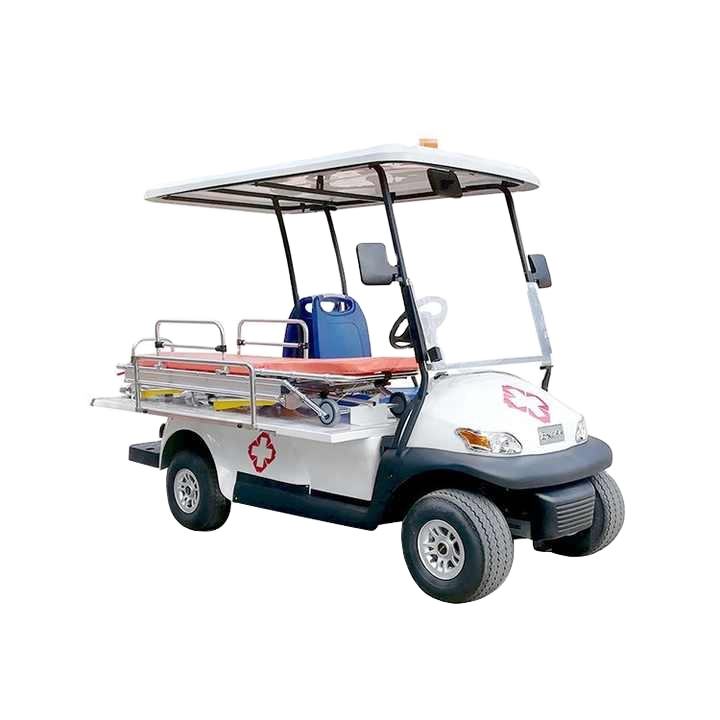

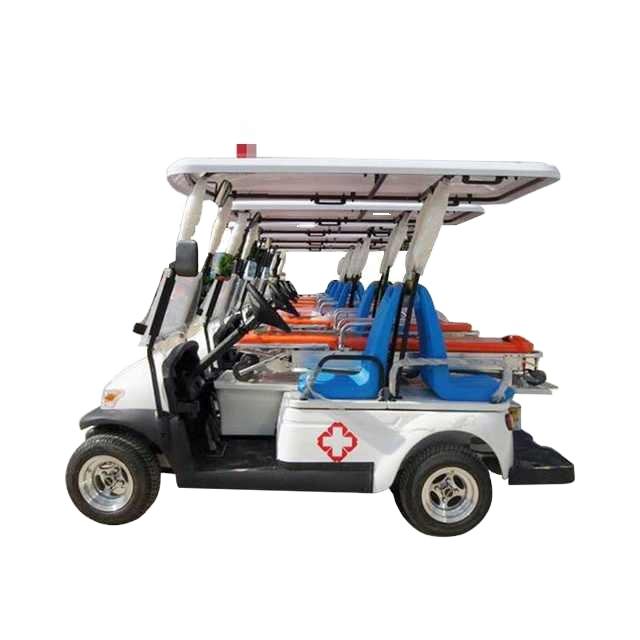

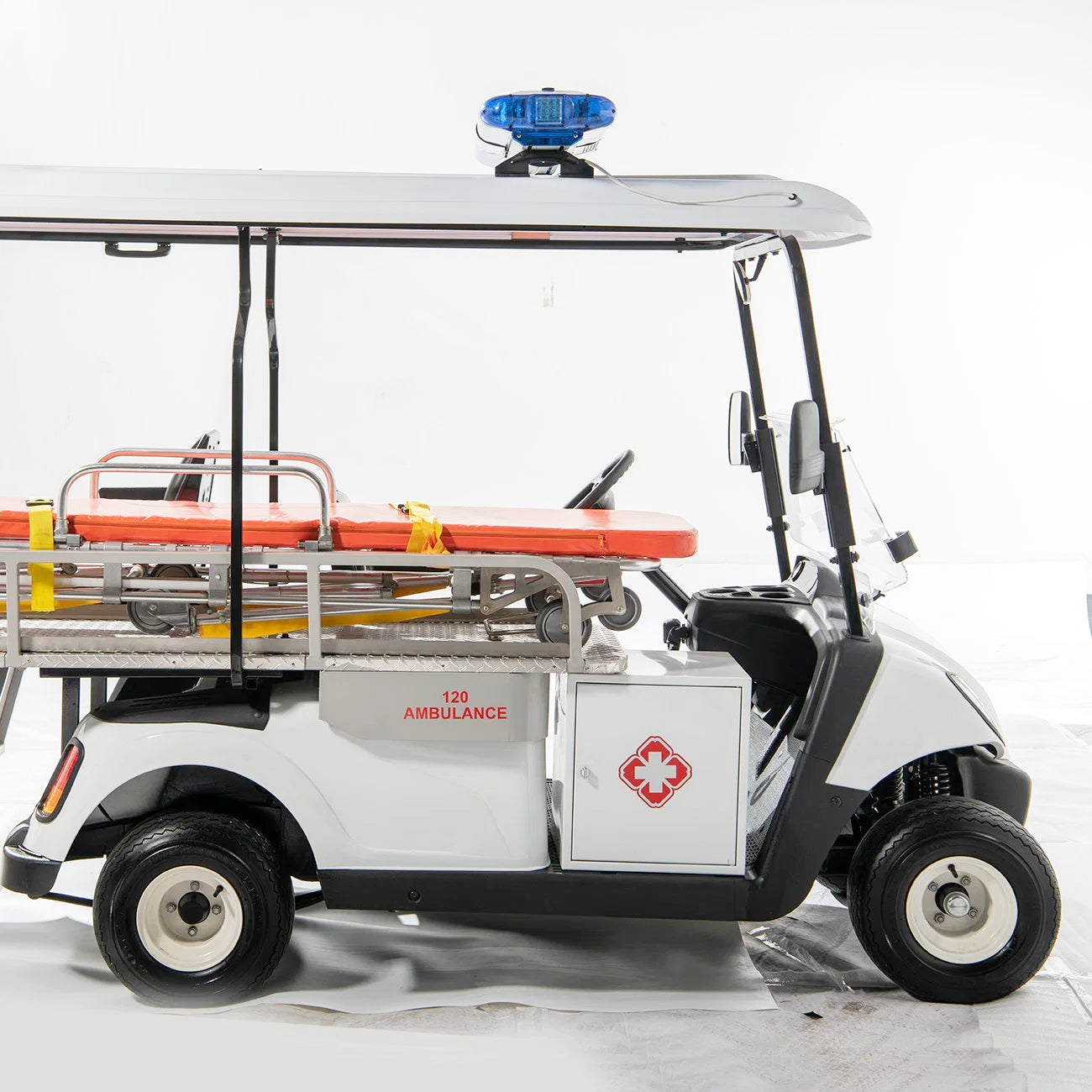

Arabian Carts 2 Seater – Medical Emergency Electric Golf Cart Buggy

The Arabian Carts Responder 2 Medical Golf Buggy is a specialized electric utility vehicle expertly designed for essential response operations. This unit seamlessly combines the agile characteristics of a golf cart with key features required for medical support. It provides an efficient solution for quick deployment in environments where larger vehicles may have limited access. With its intelligent, compact construction, integration of premium imported components, and a dedicated medical stretcher setup, this cart empowers response teams to operate with speed, confidence, and safety in diverse settings such as stadiums, event venues, or resorts.

Model: Arabian Carts Responder2 – Medical Golf Cart with Stretcher

Body: High-strength, eco-friendly composite PP (custom color options available)

Frame: Aluminium frame with enhanced structural safety features

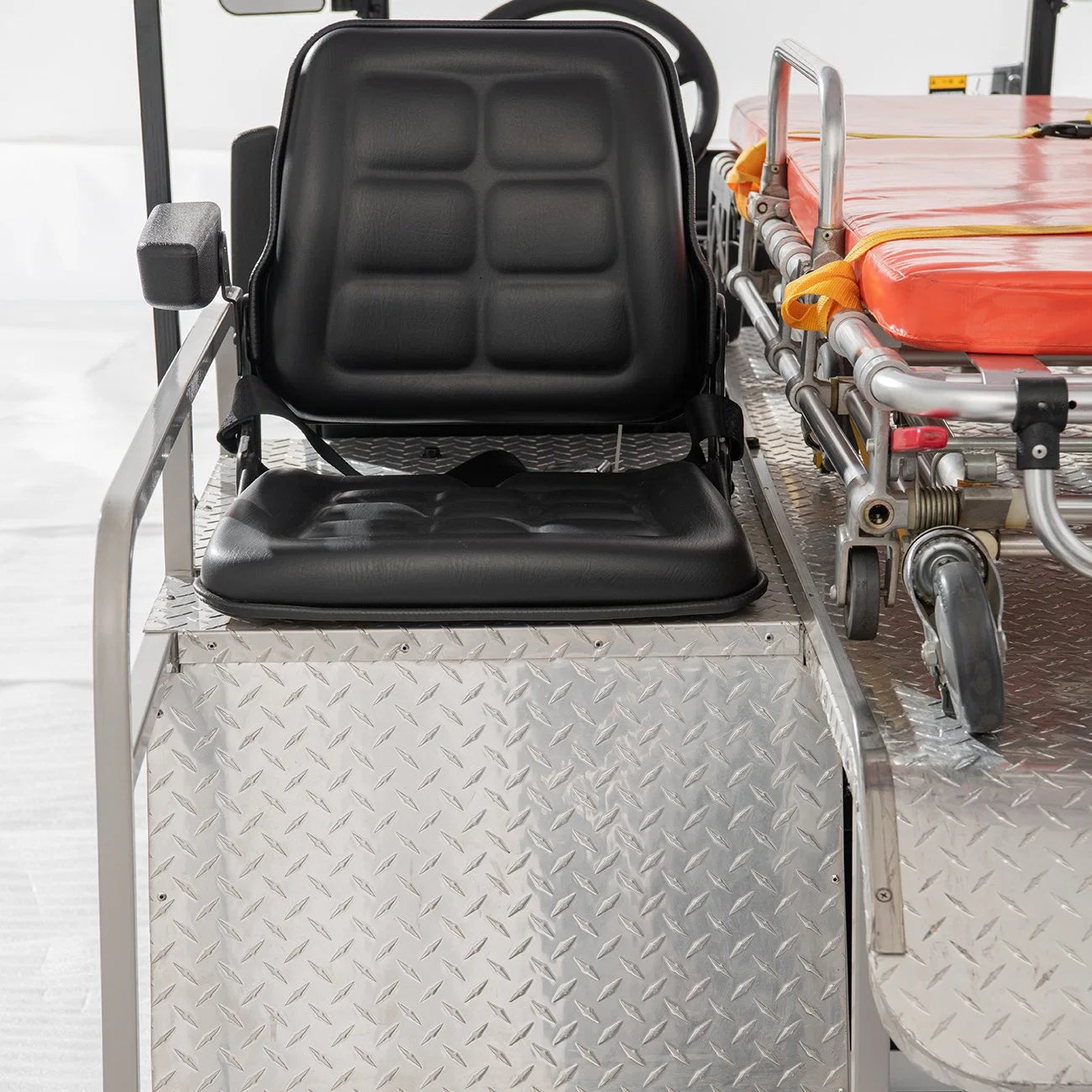

Seating: 2 personnel seats + Spine board stretcher (75.5 in x 22 in)

Maximum Load Capacity: 360 kg (includes patient and occupants)

Motor: 3.7 kW DC Separately Excited Motor (KDS, Imported)

Battery: 48V (6×8V Maintenance-Free Batteries)

Charger: 48V/25A Computer-Controlled Smart Charger

Controller: TOYOTA controller system

Top Speed: 30 km/h

Range: Up to 60–80 km, dependent on operational usage

Climbing Capacity: 30% (suitable for sloped terrains and ramps)

Gear Ratio: 12.49

Drive System: Rear electric drive, with stepless speed control

Parking: Electronic high-performance parking system

Brakes: Rear drum brake + Electromagnetic parking brake

Braking Distance: ≤ 4 meters

Steering: Rack and pinion with automatic rocker compensation

Front Suspension: MacPherson independent suspension

Rear Suspension: Multileaf spring + cylinder hydraulic shocks

Turning Radius: 2.8 meters

Wheels/Tires: 18×8.50–8, 4-layer tread, offering superior grip

Wheelbase: 1650 mm

Front/Rear Tread: 870 mm / 950 mm

Seat Width: 50 cm

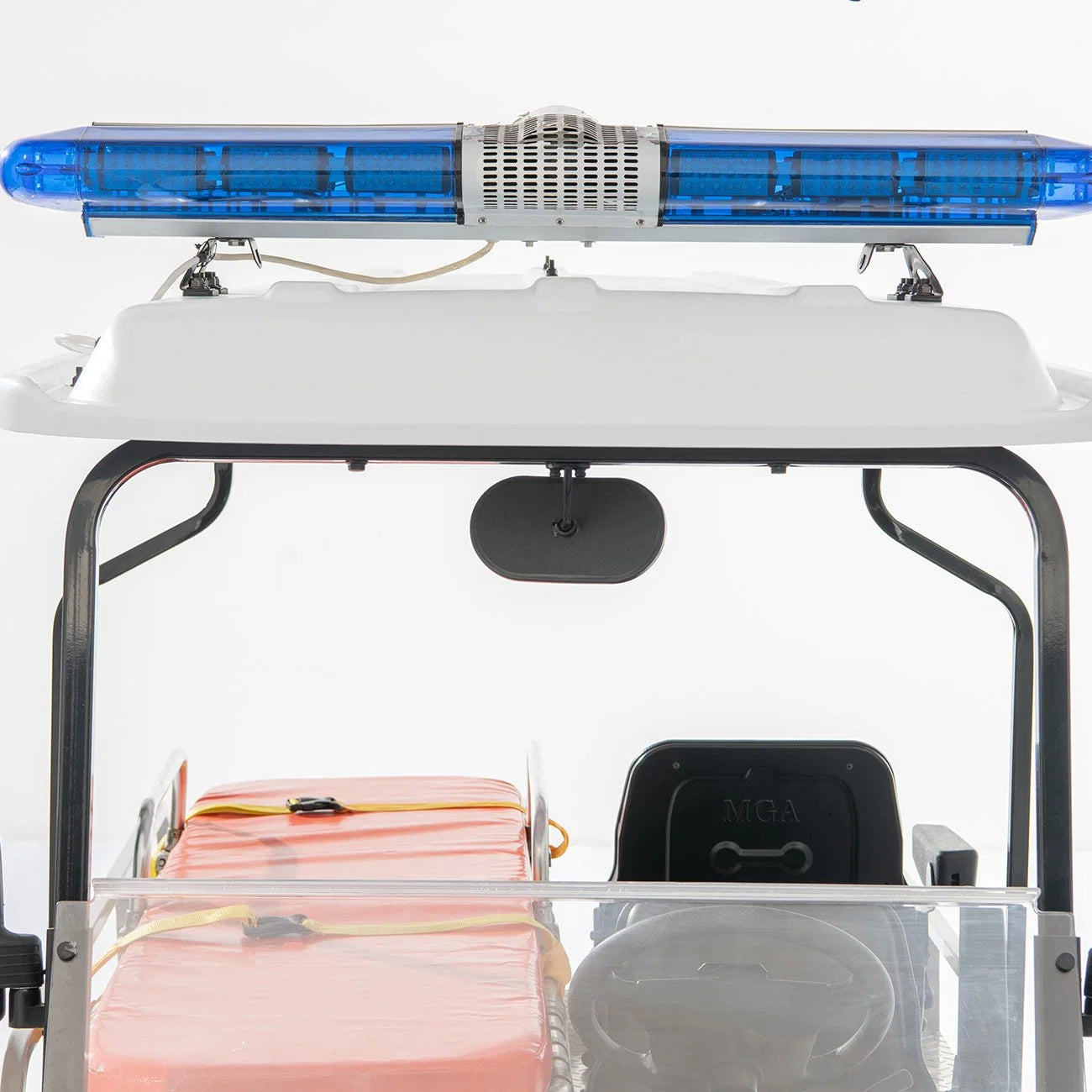

Emergency Light Bar: Features flashing LEDs for enhanced visual signaling.

Built-in Siren Sound System: Generates clear audio alerts for path notification in crowded areas.

Passenger Capacity: Accommodates 2 personnel seats in addition to a patient stretcher.

Medical Storage & Safety: Includes designated space for medical equipment and safety belts.

Eco-Friendly PP Body: Constructed from durable, non-corrosive polypropylene material.

Electromagnetic Braking System: Provides advanced stopping capabilities, especially on inclines.

Compact Turning Radius (2.8m): Allows for precise and effortless maneuverability.

Hydraulic Lift Support for Stretcher: Facilitates smooth loading and unloading procedures.

Hydraulic Lift Support for Stretcher: Facilitates smooth loading and unloading procedures.

Efficient Response Capability: Designed for swift deployment in high-traffic or limited-access zones.

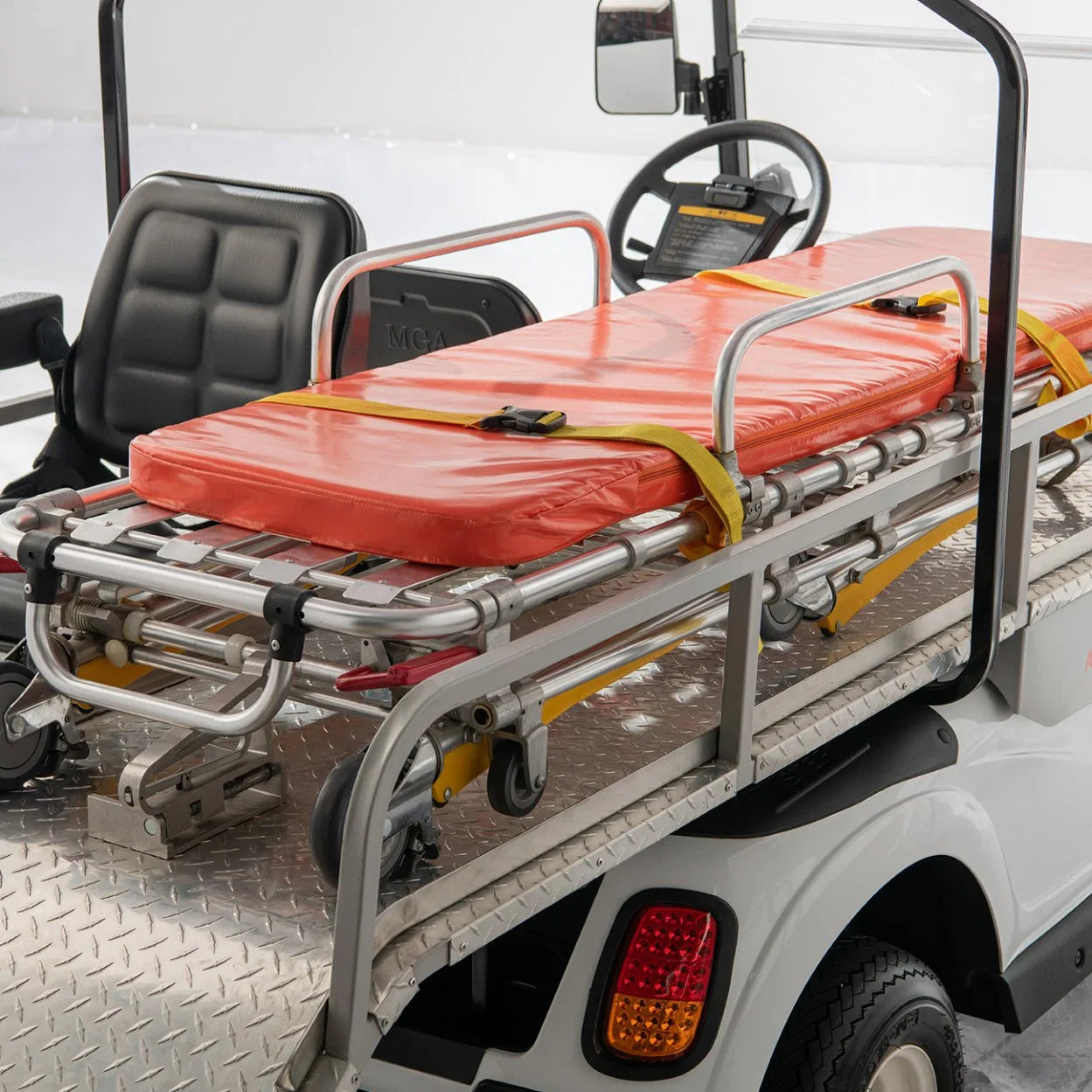

Integrated Spine Stretcher: Accommodates a standard backboard with security belts for user transport.

Operational Readiness: Equipped with a light bar, sirens, and horn for signaling and area awareness.

Accessibility Features: Facilitates direct transfer from a wheelchair to the stretcher.

Maneuverable Design: Its compact size allows for easy navigation in constrained or intricate areas.

Sustainable Electric Power: Operates quietly, efficiently, and with environmental consideration.

Robust Construction: Features a heavy-duty aluminum frame and an impact-resistant composite body for durability.

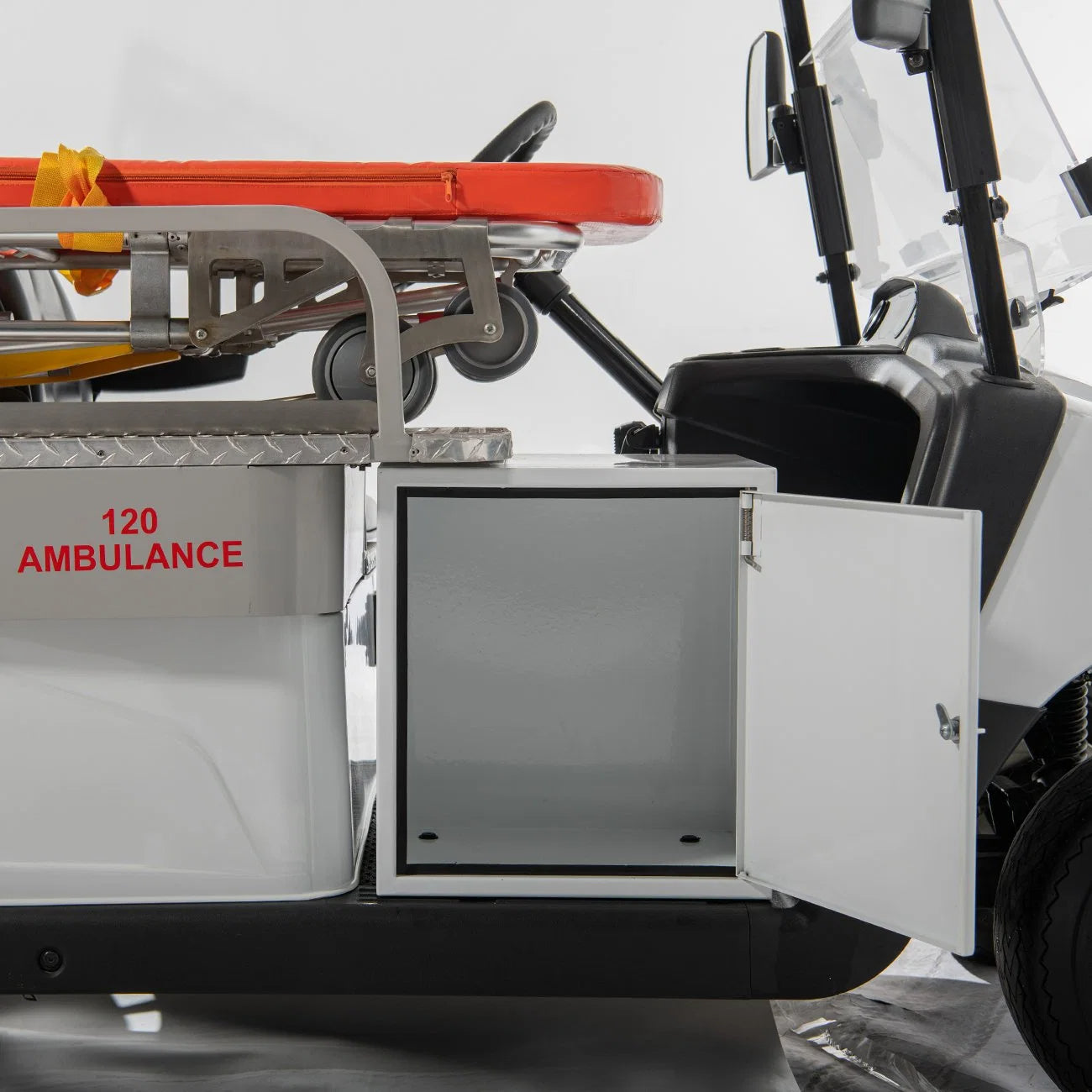

Dedicated Medical Storage: Provides secure space for a medical box and essential equipment.

Optimized Performance: Engineered for reliable operation in outdoor environments.
